DIY Guide: How to Change the Engine Oil on a Kubota L-Series Tractor

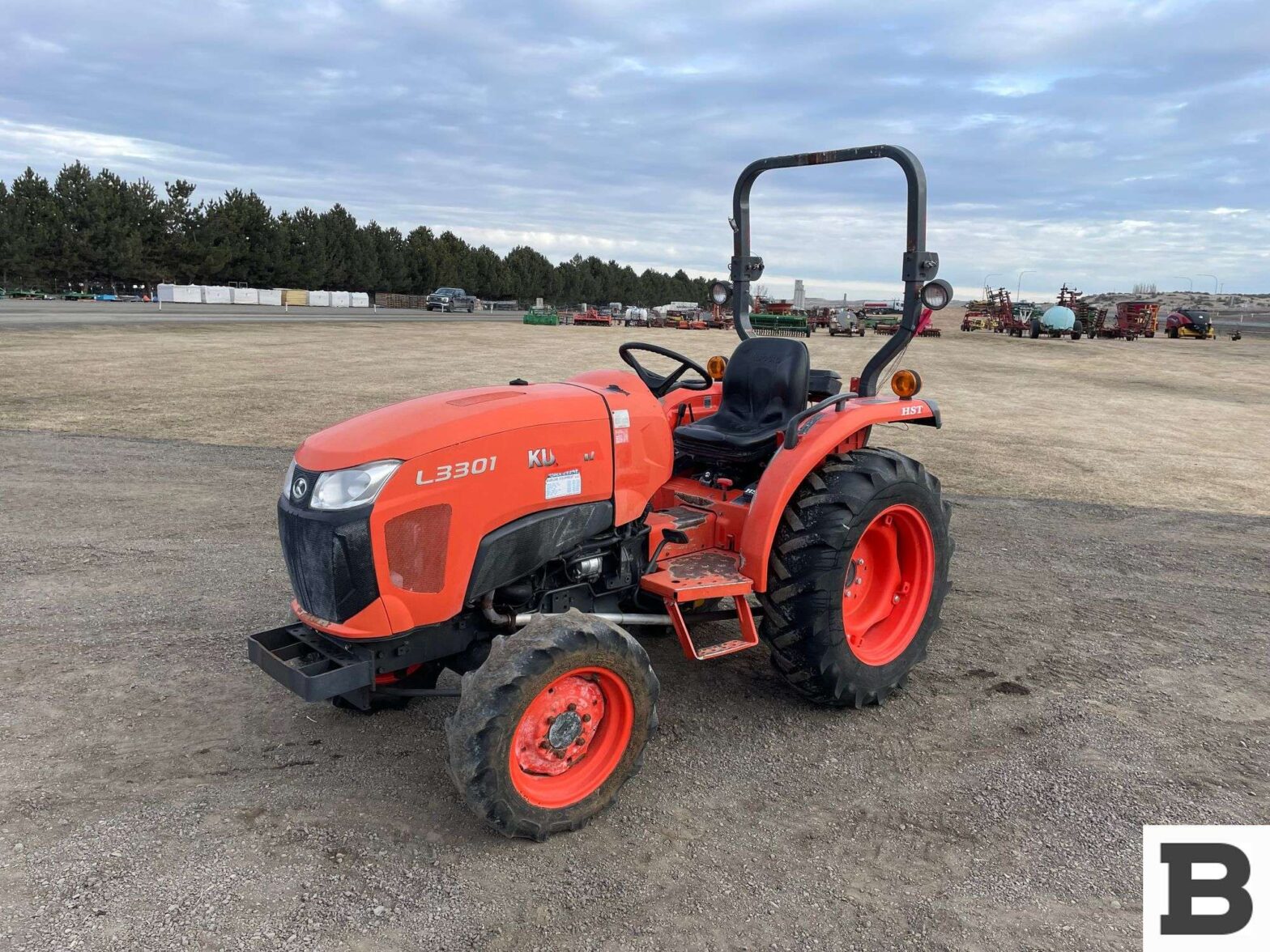

Models Covered: L2501, L3301, L3901, L4701
Proper maintenance is the lifeblood of your Kubota. Whether you are hitting your first 50-hour service or your annual 200-hour interval, changing your own oil is the best way to inspect your machine and ensure it runs for decades.
Quick Specs & Supplies
| Item: | Specification: |
| Oil Viscosity | 15W-40 |
| Capacity | 7.1 Quarts |
| Oil Filter Part # | Wix 51064 oil filter |
| Drain Plug Tool | 19mm Wrench or Socket |
| Service Interval | 200 Hours or Annually |
Step 1: Prep Your Workspace
Park the tractor on a level surface, engage the parking brake, and lower all implements (loader/backhoe) to the ground.
Pro Tip: Run the engine for 2–3 minutes to warm the oil. Warm oil flows faster and carries more contaminants out of the crankcase than cold, thick oil.
Step 2: Access the Drain Plugs
Most Kubota L-Series tractors actually have two drain plugs. Because the 4WD driveshaft runs through the middle of the oil pan, the pan is “split.”
- Place a large drain pan (at least 10 quarts) under the front axle area.
- Use your 19mm wrench to remove both the left and right side plugs.
- Remove the oil fill cap on top of the engine to allow air in, which helps the oil drain smoothly.
Step 3: Replace the Oil Filter

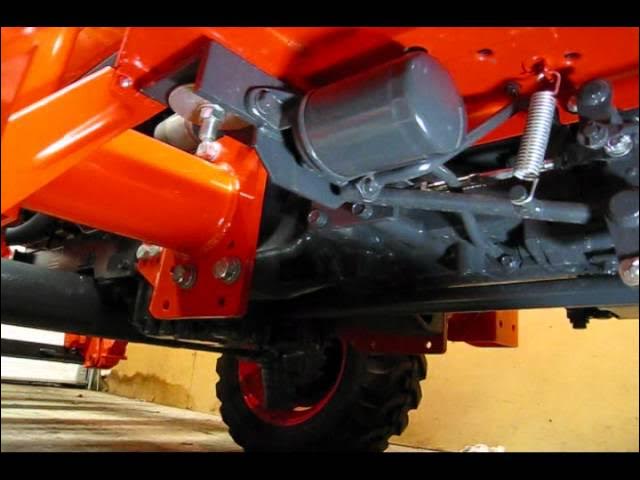

The oil filter is located on the passenger side (right side) of the engine.
- Unscrew the old filter using a filter wrench. Be careful: About a half-quart of oil will spill onto the front axle as you loosen it. Have rags ready!
- Clean the mounting surface on the engine block.
- Take your new filter and apply a thin film of fresh 15W-40 to the rubber gasket.
- Spin it on by hand until the gasket touches the base, then give it an additional 1/2 to 3/4 turn. Do not over-tighten with a wrench.
Step 4: Refill and Check
- Reinstall both drain plugs. Torque them to approximately 35-40 ft-lbs (snug with a standard wrench).
- Using a funnel, pour in your fresh 15W-40 Synthetic Diesel Oil.
- Note: Start with 6.5 quarts for L2501/3301/3901 and check the dipstick before adding the final half-quart.
- Replace the cap, start the tractor, and let it idle for 1 minute. Check for leaks around the filter and plugs.
- Shut it down, let the oil settle for 5 minutes, and check the dipstick one last time. Top off as needed.
Why 15W-40 for your Kubota?
Modern Kubota L-Series tractors utilize Diesel Particulate Filters (DPF) to meet Tier 4 emissions standards. Using a high-quality Heavy Duty 15W-40 is critical because:
- Soot Handling: It keeps carbon particles in suspension so they don’t wear down your cylinder walls.
- DPF Protection: Premium synthetics have lower “volatility,” meaning less oil burns off and clogs your expensive emissions system.
Why Should I use AMSOIL 15W-40?
Using AMSOIL synthetic lubricants in your Kubota L-Series tractor provides superior protection against heat and cold, reduces wear on critical components, and extends maintenance intervals compared to conventional oils. Specifically designed for high-stress agricultural use, AMSOIL products for Kubota tractors aim to reduce hydraulic chatter, increase hydraulic pump efficiency, and provide all-weather performance.
Key Benefits of AMSOIL for Your Kubota L-Series:
- Improved Hydraulic Operation: AMSOIL Synthetic Tractor Hydraulic/Transmission Oil (5W-30) suppresses wet-brake chatter and provides smoother hydraulic response. Many users report reduced “whine” and better performance under load.
- Superior Cold-Weather Starting: AMSOIL flows better than conventional oils at temperatures down to -58°F (-50°C), reducing wear during winter startups and eliminating the need for seasonal oil changes.
- Reduced Engine Wear and Heat: AMSOIL Signature Series Max-Duty Synthetic Diesel Oil provides up to 6X more wear protection, keeping the engine cleaner (up to 81% cleaner) and resisting oxidation in high-heat, heavy-load conditions.
- Reduced Maintenance Downtime: Synthetic oil can safely extend drain intervals, allowing you to change fluids once per year or every 200–300 hours instead of more frequent conventional oil changes.
- Compatibility: AMSOIL synthetic products are designed to be compatible with conventional tractor fluids, making switching easier.
Recommended AMSOIL Products for L-Series Tractors:
- Engine Oil: AMSOIL Signature Series 10W-30 or 15W-40 Max-Duty Synthetic Diesel Oil.
- Hydraulics/Transmission: AMSOIL 5W-30 Synthetic Tractor Hydraulic/Transmission Oil (ATH).
- Front Differential (4×4): AMSOIL Severe Gear 80W-90 Synthetic Gear Lube.
